Kitchen Design Collection This product is sold in physical kitchen stores
Model with external engine The cooker hood can be installed with an external engine, that can be placed on the ceiling or on an outside wall.
Eicolink Eicolink is an integrated combination system with a wireless connection between hob and cooker hood. The system is controlled with a remote in the hob, which can operate the cooker hoods fitted with the Eicolink logo. The cooker hood and hob can also be installed individually and will then function as normal units. It is always possible to operate the cooker hood manually.
Delayed switch-off - 10 min A part of EICO's products utilises delayed switch-off, a timer-function which starts after the cooking ends, and automatically turns off after a set amount of time.
Perimeter aspiration With perimeter aspiration, the air is effectively and quietly sucked up through narrow furrows in the ornamental panel.
Show all Show all

Features
- Highlights:
  - Kitchen Design Collection
  - Cooker hood for internal fitting in ceiling
  - Model with external engine
  - Eicolink
  - Intended for internal mounting on the ceiling or external mounting on a wall
  - Air outlet is an option from all sides and up
  - 65° angled ventilation for quicker extraction rate
  - Delayed switch-off - 10 min
  - Perimeter aspiration
  - Indicator for cleaning/change of filters
  - Delivered with a remote control
NAV Item
- Item no.: 2505
NAV Item
- EAN: 8033717412578
Sales
- Range: Kitchen Design Collection
Main
- Brand: Eico
Finish
- Finish: White / Crystal white glass
Dimensions

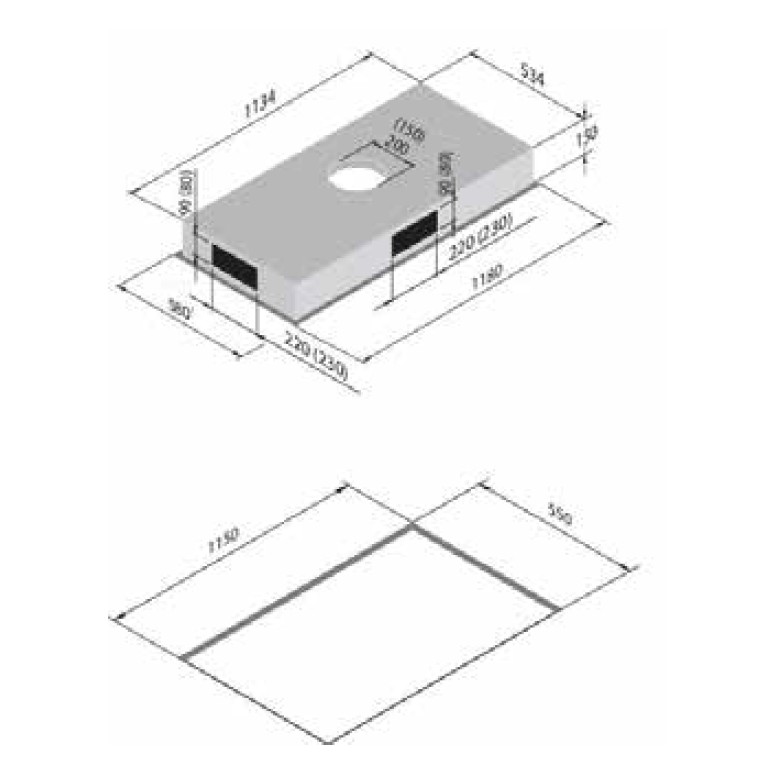

- Product (WxDxH): 1180 x 580 x 150 mm
Operation
- Operation: Remote control
Operation
- No of Levels: 3 levels
Operation
- Intensive levels: 1 intensive levels
Dimensions
- Built-in (WxDxH): 1180 x 580 x 150 mm
Operation
- Remote Included: Yes
Product
- Remote Available: Yes
Dimensions
- Air Outlet: Ø200 / Ø150 mm
Dimensions
- Air Outlet Side: 90x220 mm
Capacity
- Airflow min-max: 250 - 574 m3/h
Capacity
- Airflow (intensive): 830 m3/h
Product
- Lighting: 1 x 12,3 (LED)
Montage
- Built In model: Yes
Energy
- Energy Class:
Energy
- Energy (air): B
Energy
- Energy (light): A
Energy
- Energy (filter): F
Energy
- Energy consumption: 78 kWh/Year
Text
- Exclusive hood in a super useful design. The model is designed for mounting directly to the ceiling or in a mounting device which is built individually for the conditions. Height of only 15 cm. Duct connections through the front, rear, top, left or right side.
Text
- Note: External motor ordered separately. Extraction from the sides - Remember ducting tube 90x220 (4500) and connection (4505)

Kitchen Design Collection

This product is sold in physical kitchen stores

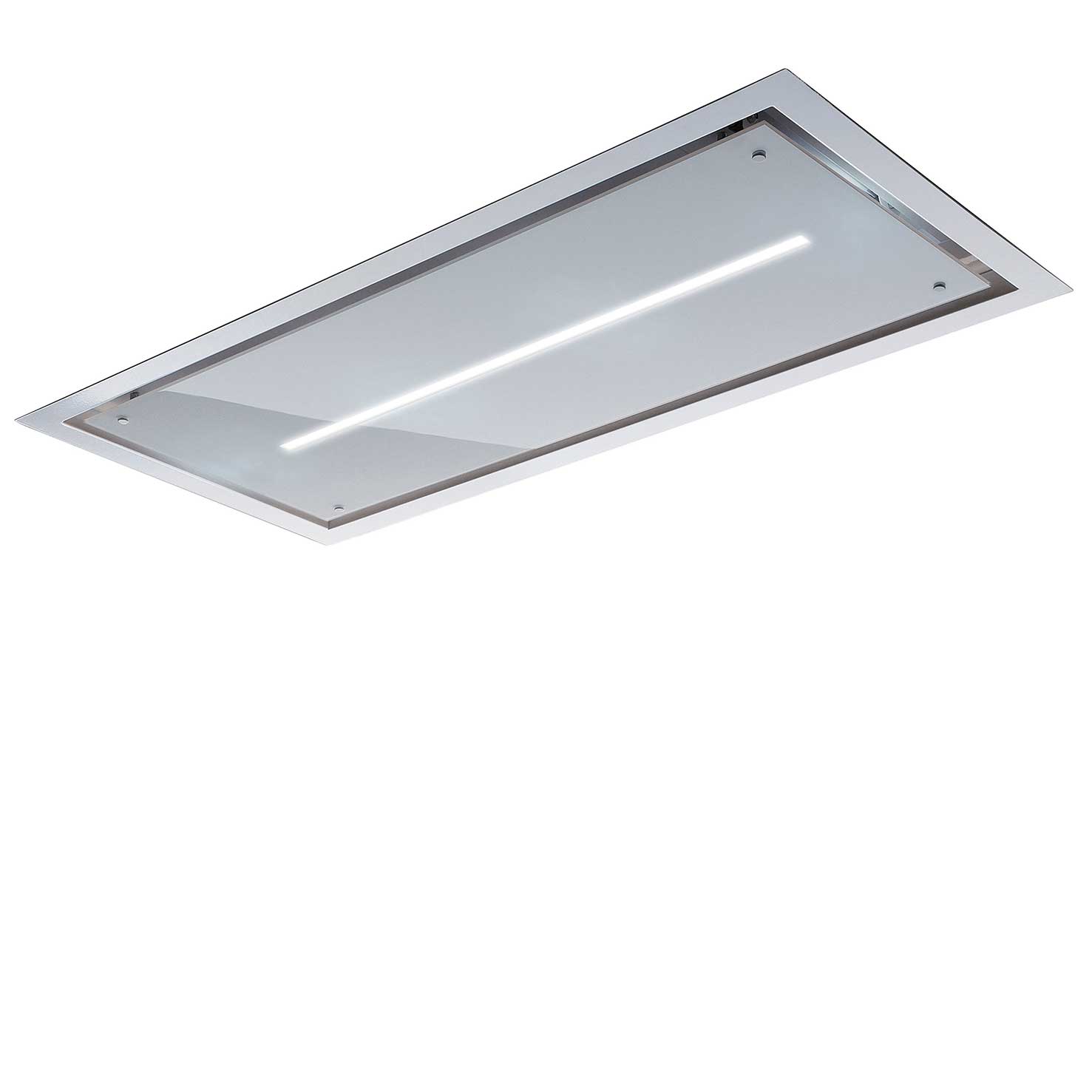

Cooker hood for internal fitting in ceiling

Often, it will be appropriate to turn on the cooker hood on the lowest setting 5-10 minutes before starting to cook, after which the exhaust is increased when more fumes and vapours are starting form. When the cooking is completed, the strength of the exhaust can be reduced once more, and one can let the cooker hood run for an additional 5-10 minutes at this strength.

Model with external engine

The cooker hood can be installed with an external engine, that can be placed on the ceiling or on an outside wall.

Eicolink

Eicolink is an integrated combination system with a wireless connection between hob and cooker hood. The system is controlled with a remote in the hob, which can operate the cooker hoods fitted with the Eicolink logo. The cooker hood and hob can also be installed individually and will then function as normal units. It is always possible to operate the cooker hood manually.

Delayed switch-off - 10 min

A part of EICO's products utilises delayed switch-off, a timer-function which starts after the cooking ends, and automatically turns off after a set amount of time.

Perimeter aspiration

With perimeter aspiration, the air is effectively and quietly sucked up through narrow furrows in the ornamental panel.

Indicator for cleaning/change of filters

Displays a signal when filters need to be cleaned.

Item no: 2505

Ceiling Stripe 120 W SM - Link

by Eico

Insert for internal fitting in ceiling. For external motor ordered separately

Productdatasheet

Find retailer

Focus
Product (WxDxH): 1180 x 580 x 150 mm
Operation: Remote control
Airflow min-max: 250 - 574 m3/h
Airflow (intensive): 830 m3/h
Lighting: 1 x 12,3 (LED)
- Optimally angled perimeter aspiration ensures good suction effect and low noise level
- Possibility of extraction at all sides and upwards
- Can be controlled remotely via EicoLink
